INSUZ PAR Model Fire Tube Steam Boilers

стальные жаротрубные паровые котлы на жидком и газообразном топливе

High-Efficiency 3-Pass Steel Steam Boiler

Three-pass, steel, fire tube steam boiler with a fully sealed combustion chamber.
It offers long service life and high efficiency through modern design, engineering, and reliable high technology, making it ideal for steam-requiring processes.

🔹 Capacity range: 400 Kg/s – 6000 Kg/s
🔹 Maximum operating pressure: 6 bar (0,6 MPa)
🔹 Maximum operating temperature:
3 bar → 143.6°C
6 bar → 165.1°C
8 bar → 170.4°C
10 bar → 179.9°C
12 bar → 187.6°C

🔹 Fuel types: Natural Gas, LPG, CNG, Diesel Oil, Fuel Oil
🔹 Boiler efficiency: Up to 91%

Custom manufacturing is available for special orders or project-specific requirements at 3, 6, 8, 10, and 12 bar pressure levels.

INSUZ PAR Model Cross-Section and Connection Dimensions

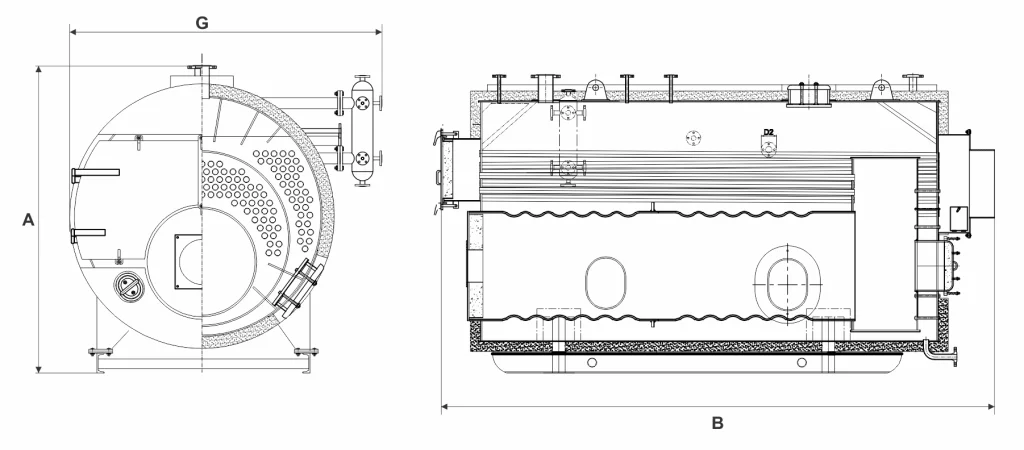

The internal structure of the INSUZ PAR series steam boilers is illustrated in detail in the technical drawing.

⚠️When selecting a burner, please contact our sales representative for technical assistance and support with burner selection.

Article No. Model Steam Capacity Thermal Capacity Steam Volume Minimum Water Volume Counter Pressure
kg/h kW m3 m3 mbar
INPAR400AK2200B15Pr.6 INPAR400 400 260 0,19 1,28 5
INPAR1000AK3200B25Pr.6 INPAR1000 1000 651 0,32 1,64 5
INPAR1600AK5200B40Pr.6 INPAR1600 1600 1042 0,46 2,85 6
INPAR2000AK6000B50Pr.6 INPAR2000 2000 1302 0,55 3,65 6
INPAR2400AK6300B60Pr.6 INPAR2400 2400 1563 0,6 4,1 7
INPAR2800AK7300B70Pr.6 INPAR2800 2800 1823 0,64 4,5 7
INPAR3200AK8200B80Pr.6 INPAR3200 3200 2084 0,7 5 8
INPAR3600AK9000B90Pr.6 INPAR3600 3600 2344 0,8 5,9 8
INPAR4000AK9300B100Pr.6 INPAR4000 4000 2605 0,9 6,7 8
INPAR5000AK11000B125Pr.6 INPAR5000 5000 3256 1,2 8,6 9
INPAR6000AK13000B150Pr.6 INPAR6000 6000 3907 1,4 9,2 9

⚠️Model Kesit ve Bağlantı Ölçüleri tablosu yalnızca masaüstü cihazlarda görüntülenebilir. Mobil cihazlarda desteklenmemektedir.

INSUZ PAR Model Steam Boiler – Connection and Dimensions Table

Technical Table;The connection points and dimensions of the INSUZ PAR series steam boilers are presented in detail in the technical table.

If you need further information or assistance in selecting the right product, please feel free to contact our team.
We are here to provide the most suitable solution for your needs!







Article No. Model Feed Water Inlet Steam Outlet Diameter Safety Connection Diameter Chimney Outlet Diameter Width G Height A Length B Weight -empty-
DN DN DN mm mm mm mm kg
INPAR400AK2200B15Pr.6 INPAR400 32 50 40 250 1550 2600 1700 2200
INPAR1000AK3200B25Pr.6 INPAR1000 32 65 40 300 1600 2900 1750 3200
INPAR1600AK5200B40Pr.6 INPAR1600 32 65 40 400 1800 3500 1950 5200
INPAR2000AK6000B50Pr.6 INPAR2000 32 80 40 450 1900 3500 2050 6000
INPAR2400AK6300B60Pr.6 INPAR2400 40 80 40 450 1900 3700 2050 6300
INPAR2800AK7300B70Pr.6 INPAR2800 40 100 50 500 2100 3900 2250 7300
INPAR3200AK8200B80Pr.6 INPAR3200 40 100 50 500 2100 4200 2250 8200
INPAR3600AK9000B90Pr.6 INPAR3600 40 100 50 550 2100 4300 2250 9000
INPAR4000AK9300B100Pr.6 INPAR4000 40 100 50 550 2150 4400 2350 9300
INPAR5000AK11000B125Pr.6 INPAR5000 50 125 65 650 2350 5100 2500 11000
INPAR6000AK13000B150Pr.6 INPAR6000 50 150 80 650 2400 5200 2550 13000

⚠️Bağlantı ve Ölçüler tablosu yalnızca masaüstü cihazlarda görüntülenebilir. Mobil cihazlarda desteklenmemektedir.

Optional Boiler Room Auxiliary Systems and Equipment

1. Steam Generation Unit (Main System)🔥♨️

🏭 Steam Boiler
🔥 Burner (Gas, liquid fuel or dual-fuel, modulating type)
🛡️ Boiler Body Insulation and Outer Cladding
♻️Flue Gas Economizer (Heat recovery system)
🌬️ Chimney System and Chimney Damper

2. Feedwater and Condensate Return System 💧🔄

🛢️Feedwater Tank (Storage tank supplying water to the boiler)
⚗️ Deaerator (System for removing oxygen and dissolved gases from water)
💦 Feedwater Pumps (Main and standby pump group)
🔄 Condensate Tank and Condensate Return Pump Group

3. Water Treatment and Conditioning System 🚰🛠

🚿 Water Softening System (Regenerable ion exchanger)
💎 Reverse Osmosis System (Optional – for high purity)
🏗️ Filtration System (Sand, carbon, iron-manganese filters)
⚗️ Chemical Dosing Unit (For corrosion and scaling prevention)

4. Control and Automation System 🎛️

🎛️ Boiler Control Panel (PLC or PID Control)
📊 Pressure, Level, and Temperature Sensors
🔥 Burner Automation and Safety System
🚨 Gas Detection and Alarm System

5. Safety and Auxiliary Equipment⚠️🛡️

🔧 Safety Valves (Overpressure protection)
🏭 Blow-Off Tank and Blow-Off Line (Sediment and pressure control)
♨️ Steam Separator and Steam Superheater (Optional)
🚂 Steam Lines, Condensate Traps, and Valves
🔇 Silencer and Acoustic Insulation
🧯 Fire Fighting and Safety System
